Getting Started — AHU7 Tutorial

Jump right in and run basic sensor health checks (bounds + flatline) on AHU7 sample data using open-fdd.

This quick start walks you through cloning the repository, installing from source, and preparing your environment to run the tutorials.

1. Install

Clone the repository and change into the project directory.

git clone https://github.com/bbartling/open-fdd.git
cd open-fdd

Create and activate a virtual environment.

python3 -m venv venv
source venv/bin/activate

Install open-fdd from source. (A future v2 release will be available on PyPI.)

pip install -e ".[dev]"

-e — Editable install: links to your source so code changes take effect immediately (no reinstall).
.[dev] — Install from current dir (.) with the dev extras: pytest, black, pre-commit.

Not included: .[dev] does not install Brick (rdflib) or notebook support. For the Brick workflow and fault viz notebook, add:

pip install -e ".[dev,brick]"      # Brick TTL, validate, run_all_rules_brick
pip install -e ".[dev,brick,viz]"  # + matplotlib for fault viz notebook
pip install ipykernel               # For .ipynb in VS Code (lightweight)

2. Next Step Run the AHU7 scripts

Continue to the Bounds and Flatline tutorials to run your first AHU fault checks on real data.

The examples directory contains the tutorial scripts. Download data_ahu7.csv and place it in examples/ before running (see the examples README for the download link). This tutorial covers two: check_faults_ahu7_flatline.py (stuck sensors) and check_faults_ahu7_bounds.py (out-of-range values). We start with the flatline script.

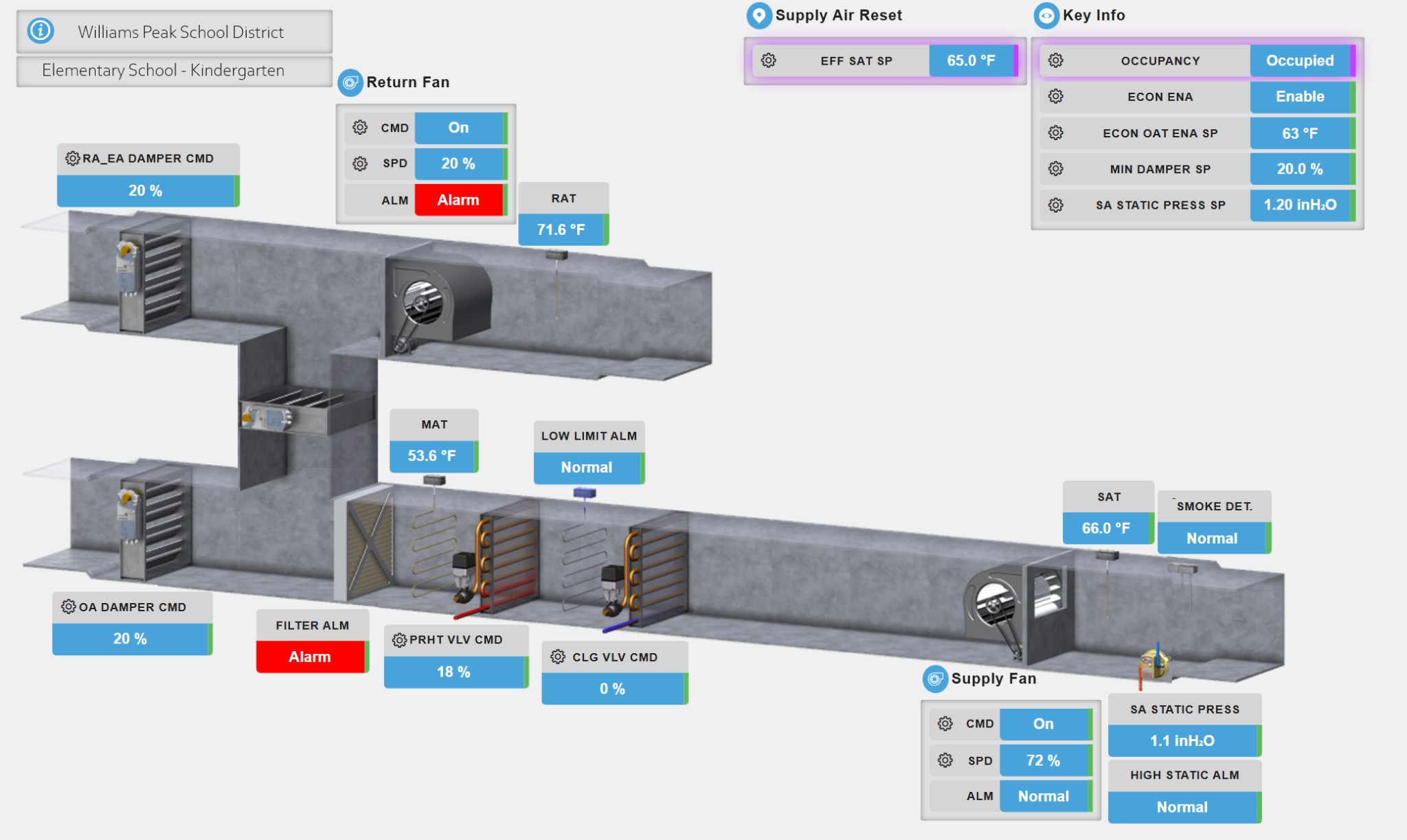

This image shows an example of a Variable Air Volume Air Handling Unit (VAV AHU) which depicts the ahu7 data we will be using in the tutorials: AHU in the GitHub Pages

On the next page, we will run a fault rule against a CSV dataset pulled from the AHU7 BAS.

Running the tutorial on your end: You don’t need to run from inside the repo. Clone the repo only to install from source (pip install -e ".[dev]"). Then create a folder on your desktop (e.g. my_rules) with your rules and data, and run the tutorial scripts from there. Future versions will be on PyPI — pip install open-fdd — so you won’t need to clone at all.

Follow along in the tutorial to get familiar with the examples directory. See the examples README for how to obtain the practice dataset.

Rule types vs expressions: All rule types produce boolean (true/false) fault flags. Only the expression type lets you write custom logic; the others (bounds, flatline, hunting, oa_fraction, erv_efficiency) use built-in checks in the engine. The flatline and bounds tutorials use those built-in types.

Next: Bounds Rule
